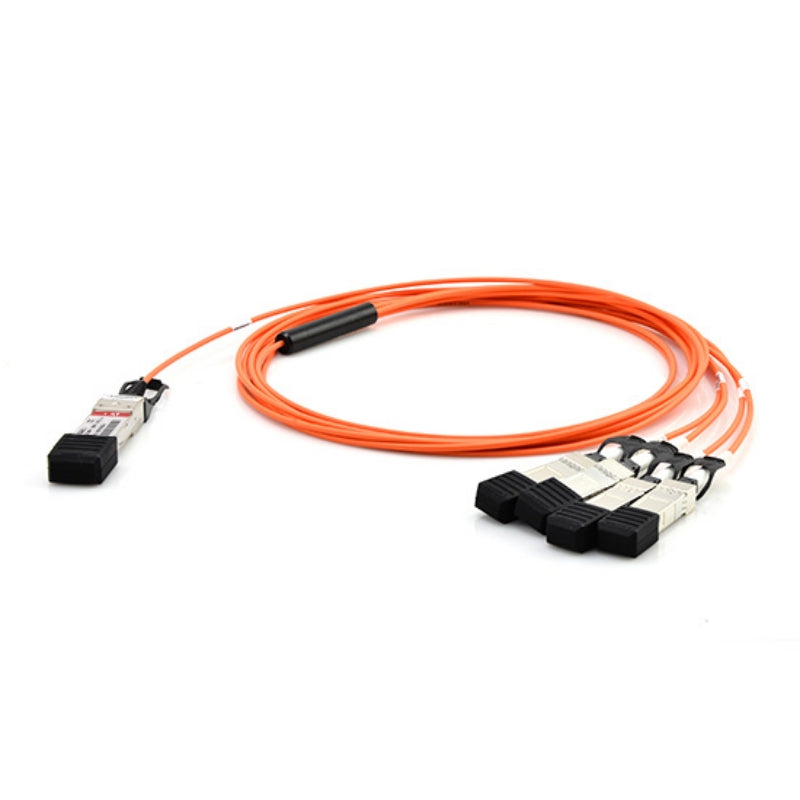

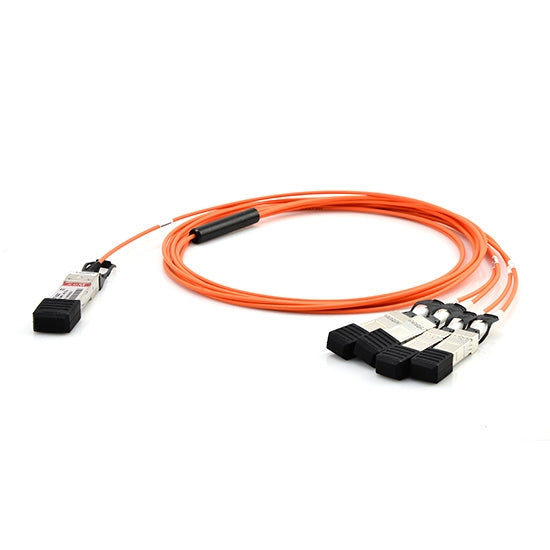

40G QSFP+ to 4x10 SFP+ Break-Out Active Optical Cable

Description

Used for splitting one AC-MXNET-10G-SW24Q/SW48Q 40G QSFP+ port to act as four 10G SFP+ ports, which can then be used to link to four additional MXNet 10G TCVRs, or stack to an AC-MXNET-1G-SW24/SW48 for large distributed networks with the 24Q/48Q acting as a "Core" switch.

The 40G QSFP+ to 4 SFP+ Breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards.

It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.


Read more

40G QSFP+ to 4x10 SFP+ Break-Out Active Optical Cable

Product form

  • Max. Power Consumption 1.3W @QSFP+, 1W @SFP+
  • Supports 40G to 4x 10G Ethernet Interoperability
  • Minimum Bend Radius 7.5mm for Flexible Routing
  • Hot Pluggable QSFP+ and SFP+ MSA Compliant

SKU: AC-40G-BOC-01

  • Shipped today? Order within: Mar 22, 2025 13:00:00 -0500

Login

Description

Used for splitting one AC-MXNET-10G-SW24Q/SW48Q 40G QSFP+ port to act as four 10G SFP+ ports, which can then be used to link to four additional MXNet 10G TCVRs, or stack to an AC-MXNET-1G-SW24/SW48 for large distributed networks with the 24Q/48Q acting as a "Core" switch.

The 40G QSFP+ to 4 SFP+ Breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards.

It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.


Read more

  • Specs
Connector TypeQSFP+ to 4 SFP+
Data Rate40Gbps
Minimum Bend Radius7.5mm
Cable Length1m (3.28ft)
Jacket MaterialOFNP
Temperature0 to 70°C (32 to 158°F)
Protocols10G/40Gigabit Ethernet or Fiber Channel
