MXnet 1G Evolution II 4K 4x1 Multi-viewer

Description

The AC-MXNET-1G-MV41V2 boldly redefines video tiling and the multi-source/ multiviewing experience. Traditional multiview devices in the video digital age statically tethered four HDMI sources for output on a single display.

Integrated into an AVPro Edge MXnet Evolution II ecosystem, this AV-over-IP 1 RU chameleon incorporates four onboard EV2 decoders plus an output EV2 encoder to simultaneously choreograph any four ecosystem sources to any, or all, ecosystem decoders in configurations limited only by your imagination.

Any encoded source is multiview-eligible for delivery to every ecosystem decoder, creating unparalleled flexibility to address the specific requirements demanded by installation applications ranging from Hospitality, Education, Government, and Medical, to Retail and the Workplace.

Sources, up to 4K/60 fps, are delivered in real time. MXnet’s Mentor Web UI control application intuitively and easily reconfigures sources for live tile and drag-and-drop editing, with changes occurring immediately to meet dynamically evolving circumstances. Alternatively, a comprehensive API empowers control by major third-party automation providers.

Four pre-configured layouts, consisting of 2 x 2 PIP, one large pane with three along the bottom, three on the left side with one adjacent large pane, plus cascade, may be customized and are recallable.

MXnet 1G Evolution II 4K 4x1 Multi-viewer

Product form

Combines four sources from an unlimited number of MXnet Evolution II ecosystem encoders to deliver a multi-view image to any connected MXnet Evolution II ecosystem decoder.

  • Seamlessly Integrates Into the MXnet Evolution II Ecosystem
  • Any MXnet Evolution II Encoder is Source-eligible for Unlimited Tiling Combinations
  • Enables Multi-image Viewing at Any MXnet Evolution II Decoder Location
  • Simplified Setup and Configuration Via MXnet Mentor

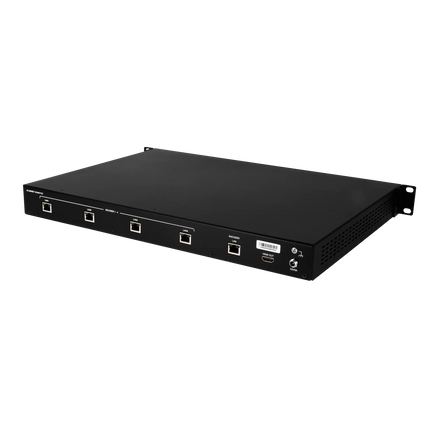

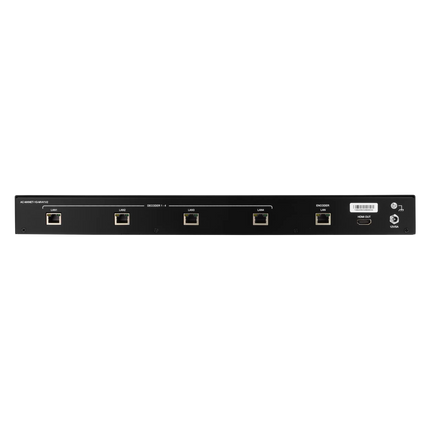

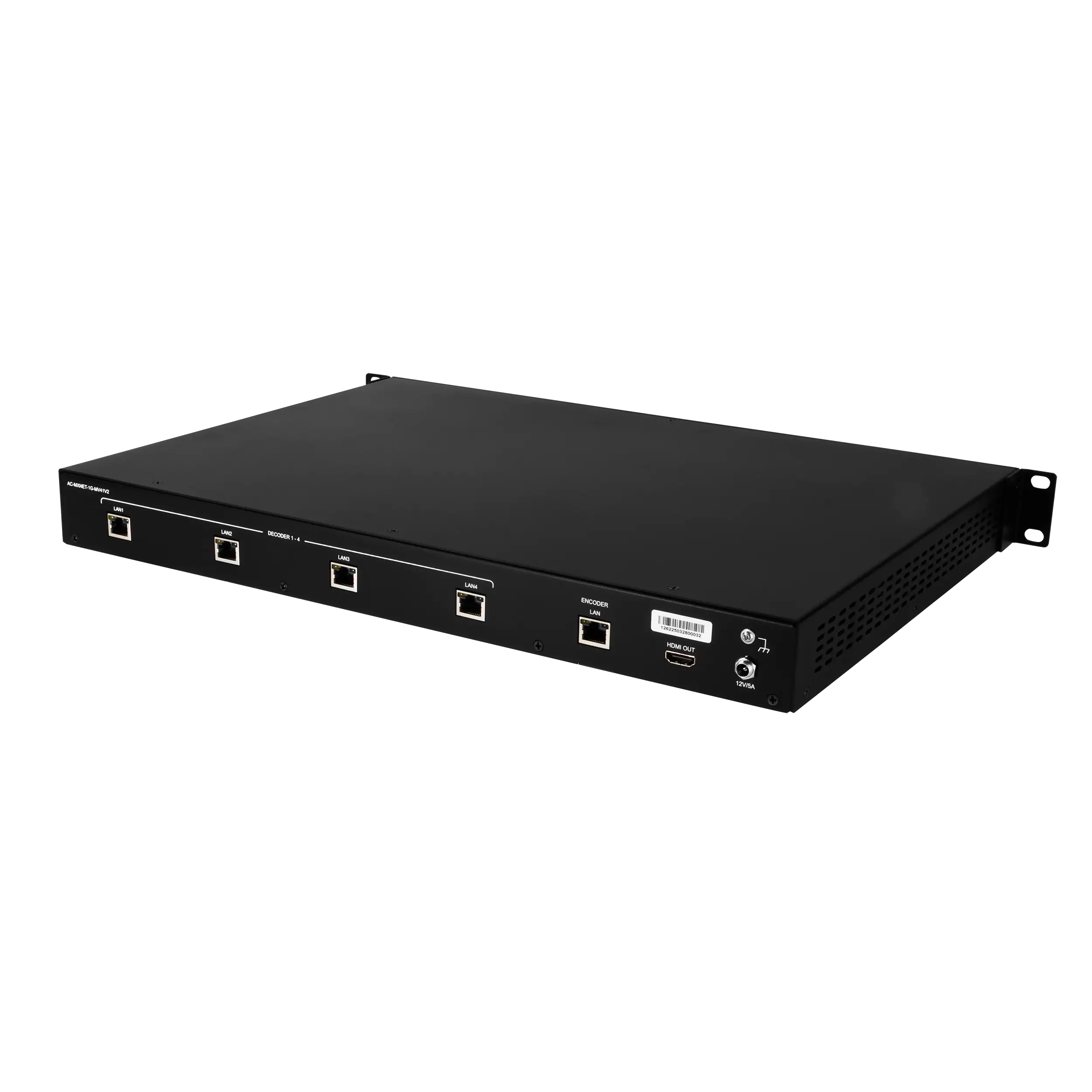

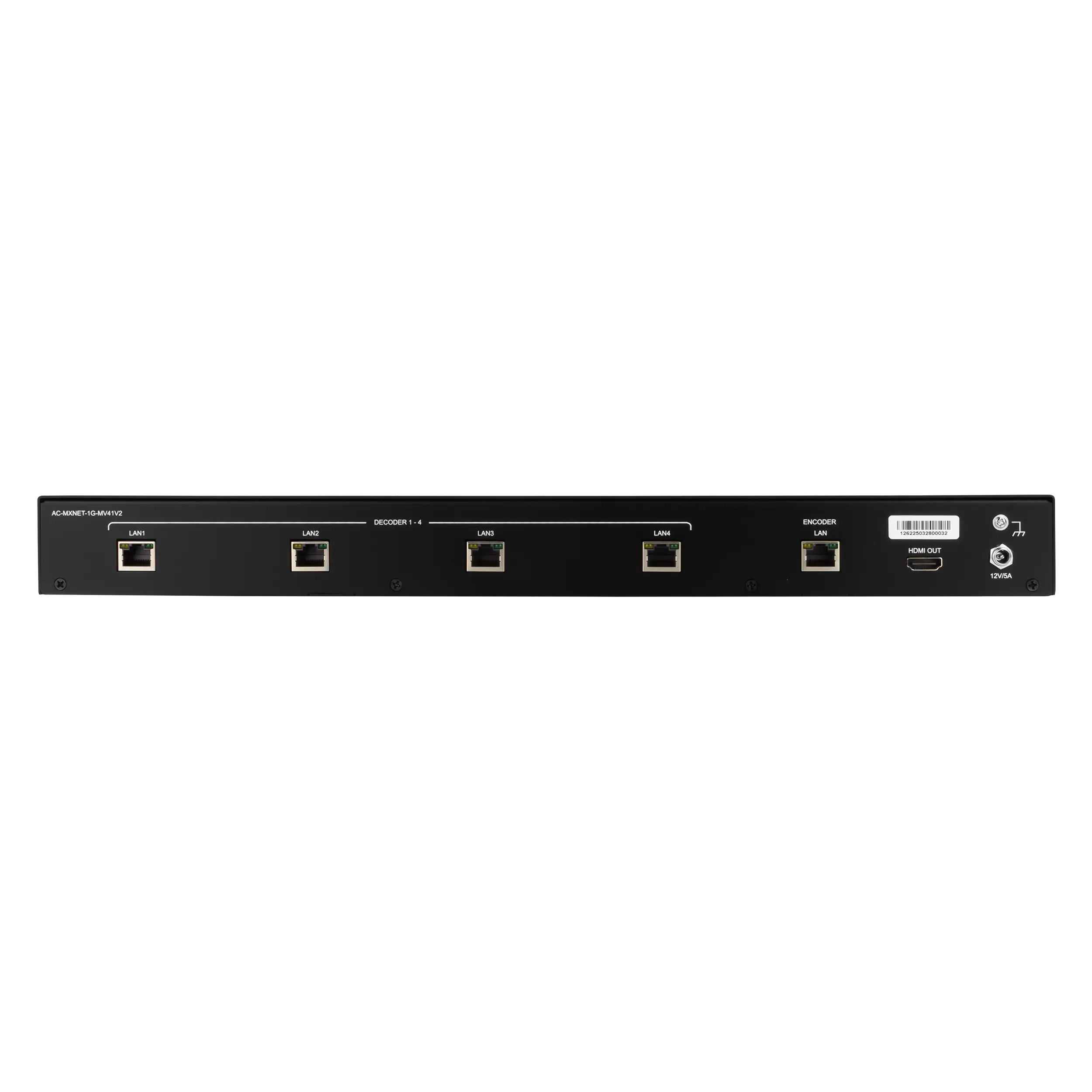

  • Four RJ45 Inputs, One RJ45 Output with Parallel HDMI 2.0b Monitor Output
  • Onboard Input Decoders/ Output Encoder Consolidate Rack Space

SKU: AC-MXNET-1G-MV41V2

  • Shipped today? Order within: May 09, 2025 13:00:00 -0500

Description

The AC-MXNET-1G-MV41V2 boldly redefines video tiling and the multi-source/ multiviewing experience. Traditional multiview devices in the video digital age statically tethered four HDMI sources for output on a single display.

Integrated into an AVPro Edge MXnet Evolution II ecosystem, this AV-over-IP 1 RU chameleon incorporates four onboard EV2 decoders plus an output EV2 encoder to simultaneously choreograph any four ecosystem sources to any, or all, ecosystem decoders in configurations limited only by your imagination.

Any encoded source is multiview-eligible for delivery to every ecosystem decoder, creating unparalleled flexibility to address the specific requirements demanded by installation applications ranging from Hospitality, Education, Government, and Medical, to Retail and the Workplace.

Sources, up to 4K/60 fps, are delivered in real time. MXnet’s Mentor Web UI control application intuitively and easily reconfigures sources for live tile and drag-and-drop editing, with changes occurring immediately to meet dynamically evolving circumstances. Alternatively, a comprehensive API empowers control by major third-party automation providers.

Four pre-configured layouts, consisting of 2 x 2 PIP, one large pane with three along the bottom, three on the left side with one adjacent large pane, plus cascade, may be customized and are recallable.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Unlimited Flexibility

As MXnet AV-over-IP represents the ultimate matrix switcher, the AC-MXNET-1G-MV41V2 is the ultimate 4-input AV-over-IP video tiler. The effortless matrixing that AV-over-IP affords to source and display signal routing provides the AC-MXNET-1G-MV41V2 with dynamic source-switching flexibility denied to direct-connect HDMI multiviewers. Uniquely incorporating four input decoders and an output encoder onboard the space-saving 1 RU chassis, all linked with the network switch, establishes virtual matrixing capabilities via MXnet Evolution II that are impossible to create in an HDMI-configured multiview domain. Any four-source combination can be sent to any or all end-point decoders.



HLG and Enhanced Metadata Format Compatible

When suitably configured, HLG, HDR10, and Dolby Vision signals may pass through the AC-MXNET-1G-MV41V2 as a single source in a 100% full single-pane window with metadata intact. A commercial or residential sports bar setting featuring a national sporting event in HLG may wish to maximize the image on the entire display.



For multi-source, mixed dynamic range use, metadata is stripped away from enhanced sources, and the signal is converted into RGB. This ensures that each active pane retains a flawless, uniform appearance.



Third-party Overcontrol

The AC-MXNET-1G-MV41V2 is Control4-ready and automation-friendly with all major control systems. The extensive API is designed to equip integrators with all the command tools necessary to provide a seamless, end-user experience.



MXnet Mentor Interface

The familiar MXnet Mentor GUI simplifies setup, configuration, and on-the-fly changes from an ecosystem central location.



Layout Customization

Four default layout configurations; a fourth is customizable and recallable for application-specific requirements.

The defaults can be temporarily modified as desired; however, each is restored to its default when power is recycled.



Ultra Low Latency

Image exchanges are performed with minimal, virtually imperceptible delay. Drag-and-drop live tile editing changes are rendered immediately.



1 RU Space-Saving Chassis

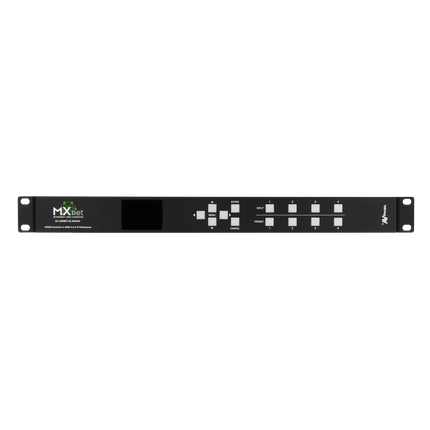

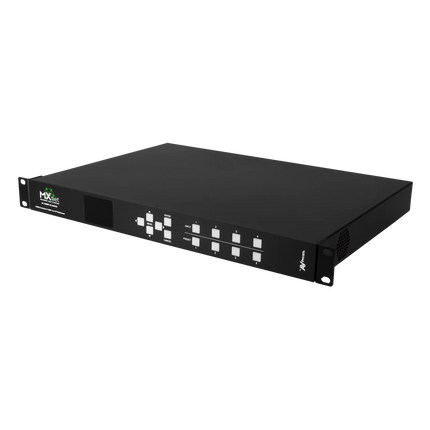

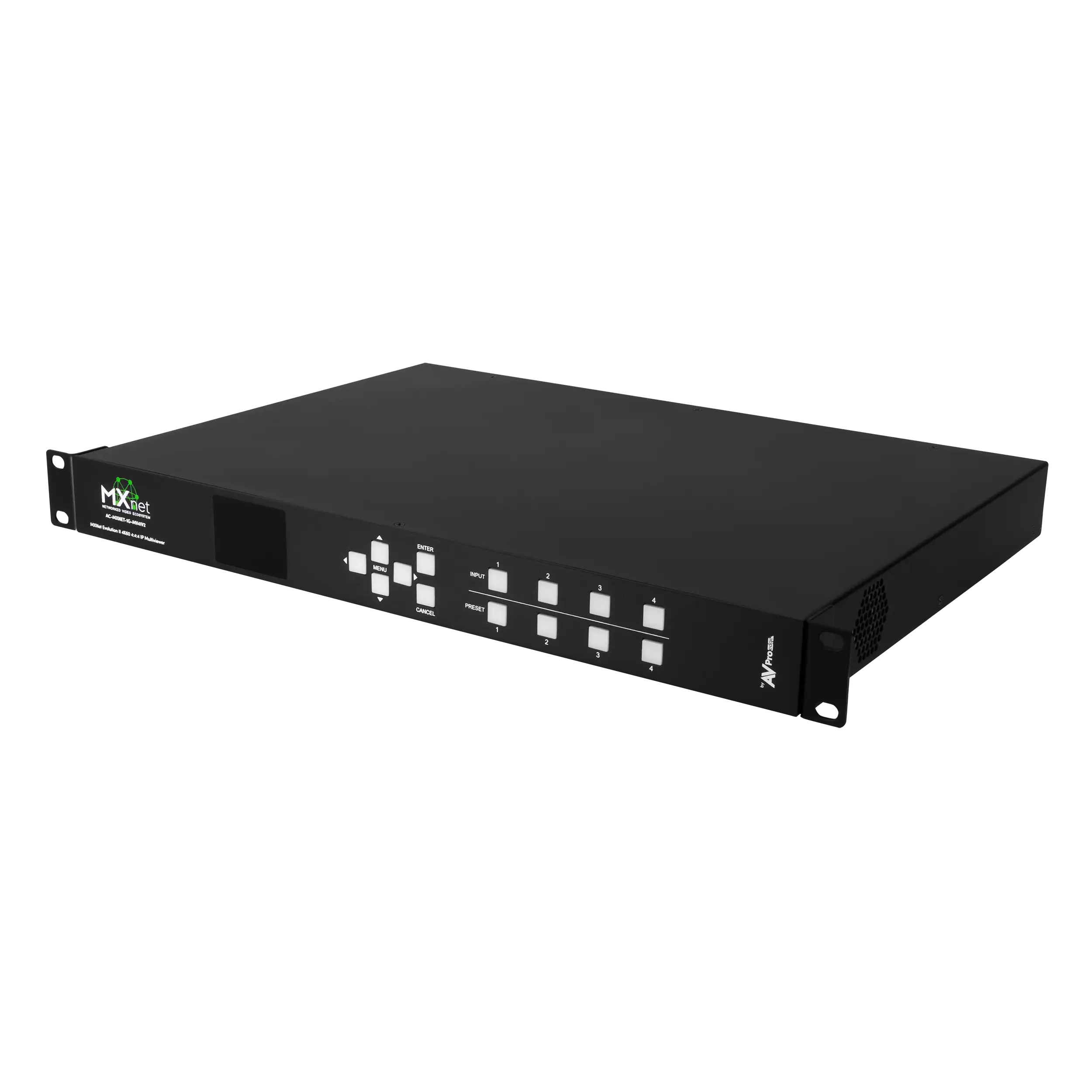

Four decoders and an encoder in a chassis one rack unit in height efficiently consolidate vertical rack space. A selectable, high-visibility front panel OLED window displays IP and MAC addresses for quick, at-a-glance verification, foregoing a PC connection.



HDMI Monitor Output

The output encoder circuitry adds an EDID-managed HDMI output for a local queuing monitor.

Video Input
Signal TypeDVI 1.0, HDMI 2.0b
Video Resolution720p/50 & 60 fps; 1080p/ 24, 50 & 60 fps; 4K/50 & 60 fps 4:4:4; 4K/30 fps 4:4:4; 4K/60 fps 4:2:0 & 4:2:2 4K/24 fps 4:2:0 & 4:2:2
Chroma Subsampling4:4:4, 4:2:2, 4:2:0, RGB
Bit Depth per Color1080p 8-, 10-, and 12-bit. 4K 8-, 10-, and 12-bit
Visually Lossless4096x2160p/ 60 fps (8-bit) 4:4:4 or RGB; 3840x2160p/ 60 fps (12-bit) 4:2:2 Dolby Vision; 3840x2160p/60 fps (10-bit) 4:2:2 HDR10 and HLG; 1920x1080p/60 fps (12-bit)
Audio
Audio Format (end-to-end)PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1, Dolby Digital Plus, DTS 5.1, DTS–ES, DTS–HD High Resolution, DTS-HD Master Audio, Dolby Atmos
Ports
Ethernet(5) x female RJ45
HDMI(1) x HDMI Type A 19-pin, female, HDMI output
Distance
Ethernet100 Meters/ 330 Feet over CAT5e and above
Environmental
Operating Temperature23°F  to 125°F (  -5°C to 51°C)
Storage Temperature-4°F  to 140°F (-20°C to 60°C)
Operating Humidity5% to 90% RH (No Condensation)
Cooling1x20 mm Noctua Fan
Acoustic Noise Level14.9 dB (A)
Power
Max Power Consumption23.04 W (12 VDC, 1.92 A)
PoE (Power over Ethernet)N/A
Power Supply UnitAC Input: 100-240 VAC ~ 50/60 Hz
DC Output: 12 VDC, 5 A
Dimensions
Dimensions (Unit only) Width/Depth/Heightmm: 439.67 x 315.98 x 44.45
in: 17.31 x 12.44 x 1.75
Dimensions (Packaged) Width/Depth/Heightin: 21.73 x 18.98 x 6.50
Weight (Unit)9.34 lbs. (4.24 kg)
Weight (Packaged)12.47 lbs (5.66 kg)
Specifications subject to change without notice.  Mass & dimensions are approximate.
  • 1x AC-MXNET-1G-MV41V2

  • 1x Power Cable
  • 1x Grounding Wire
  • 4x Optional Base Risers
  • 4x Screws
